Winix 5520 Filter

• Advanced True HEPA Filtration: Captures up to 99.99% of airborne particles measuring 0.1–0.3 microns under specified laboratory testing conditions.
• AOC Activated Carbon Filter: Helps reduce household odours from cooking, pets, and smoke, along with certain volatile organic compounds (VOCs).

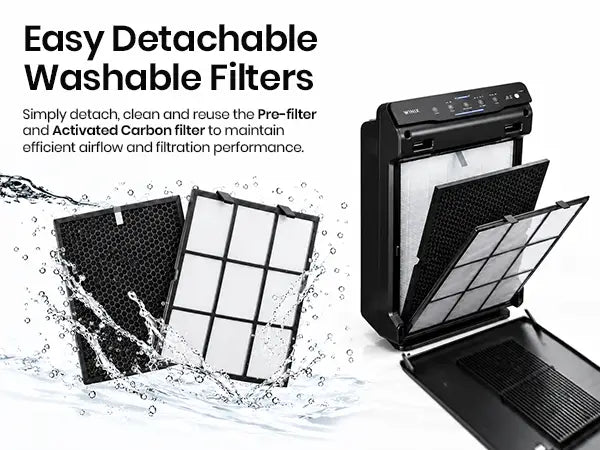

• Reusable Fine Mesh Pre-Filter: Captures larger particles, including pet hair, lint, and dust, and can be cleaned using a vacuum cleaner or soft brush.
• 4-Stage Air Purification: Combines mechanical filtration, activated carbon technology, and PlasmaWave electronic air treatment.
• Effective Particle Capture: Helps reduce airborne pollen, dust, pet dander, and fine smoke particles.
• Convenient Filter Maintenance: The reusable pre-filter supports regular dry cleaning, while the True HEPA and AOC carbon filters are replaced at recommended intervals.

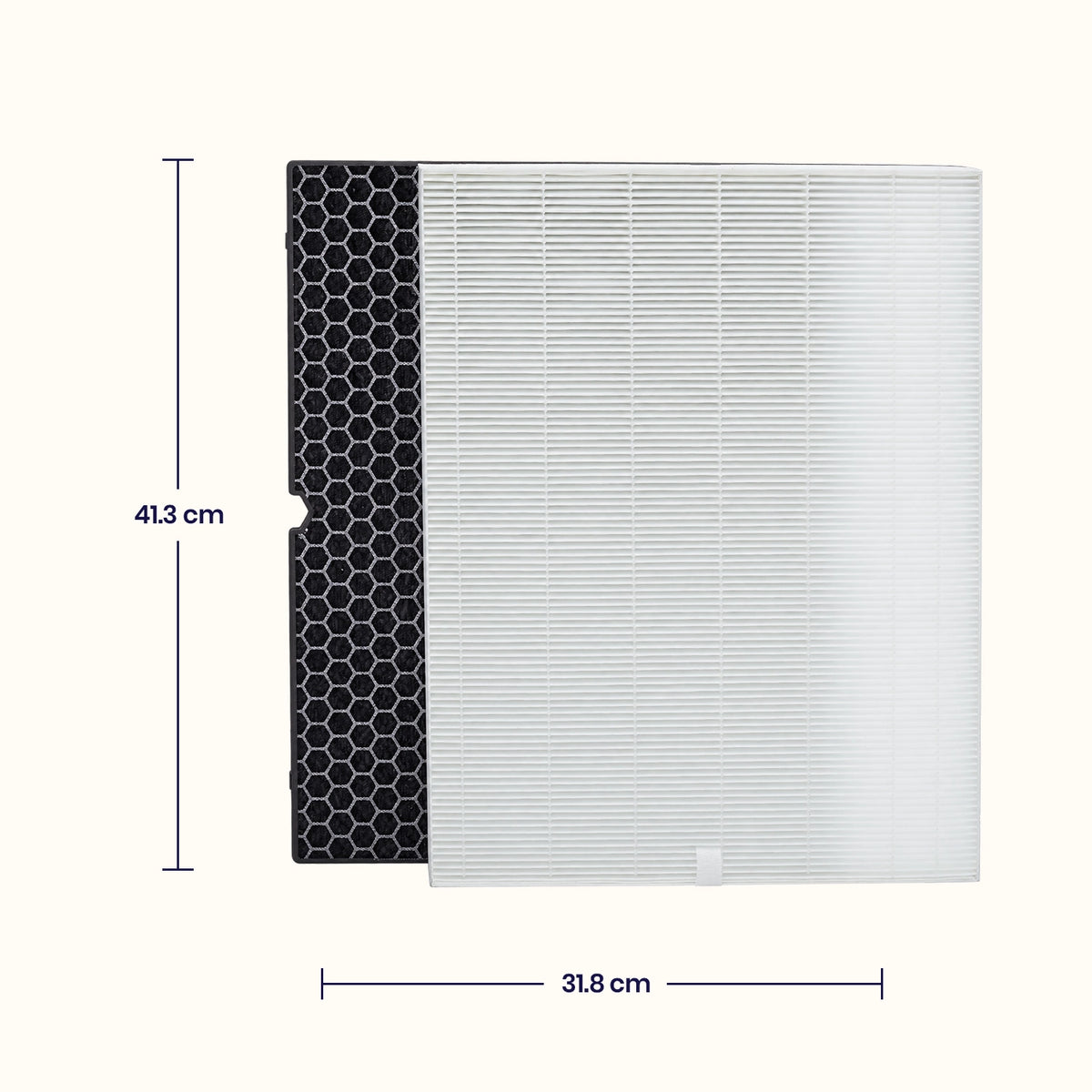

• Model-Specific Filter Design: Supports proper fit and intended airflow within the WINIX 5520 Air Purifier.
• Reliable Filtration Performance: Regular cleaning and timely replacement help maintain consistent air purification performance.

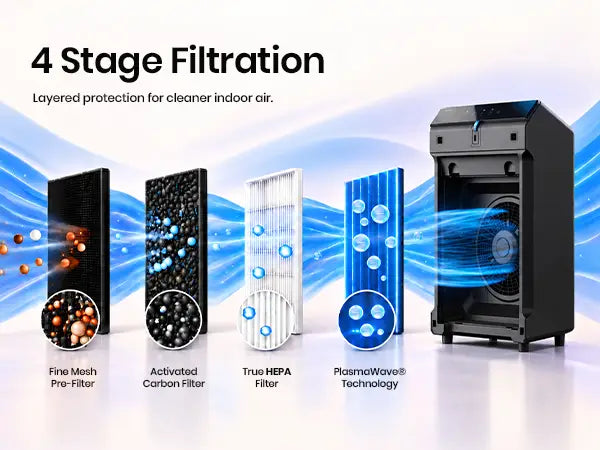

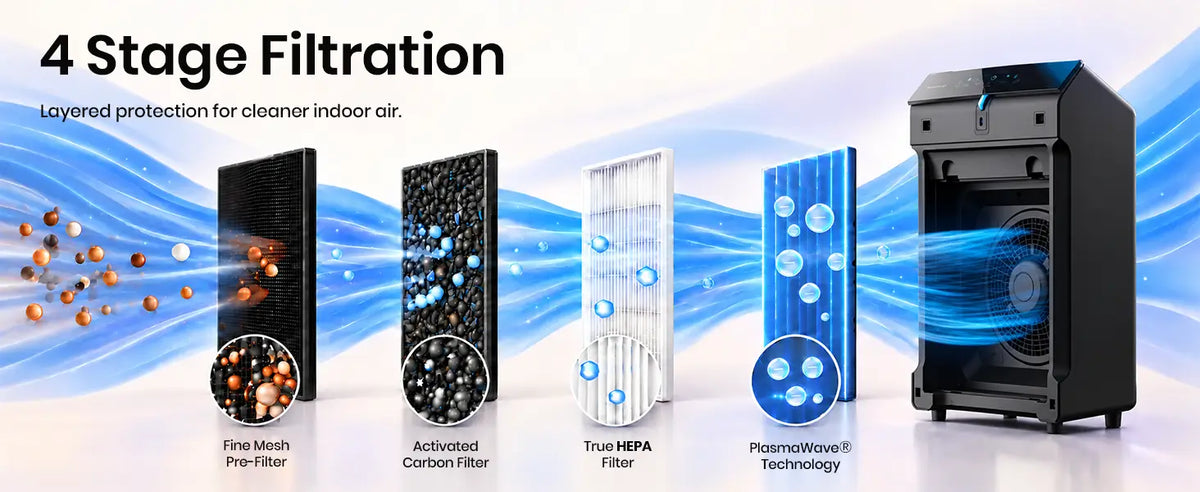

The WINIX 5520 Air Filter works with a four-stage air purification system that combines particle filtration, activated carbon odour control, and PlasmaWave electronic treatment. Each stage performs a different function to help manage indoor airborne pollutants.

1. Fine Mesh Pre-Filter

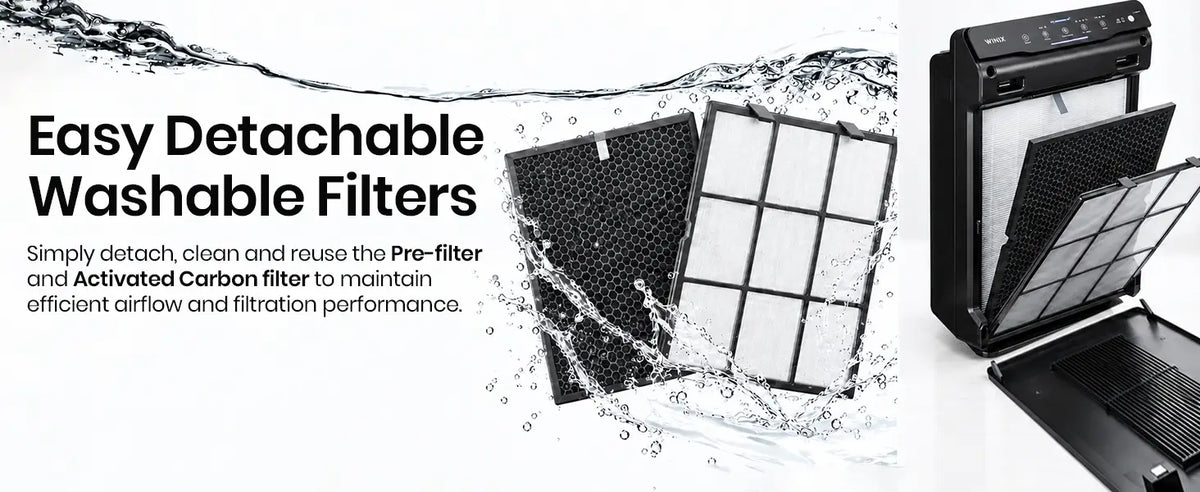

The reusable fine mesh pre-filter acts as the first protective layer of the WINIX 5520 filtration system. It captures larger airborne particles, including visible dust, pet hair, and lint, before they reach the main filtration media.

By collecting larger particles, the pre-filter helps limit dust accumulation on the downstream filters and supports proper airflow.

Maintenance & Care:

• Reusable fine mesh construction.
• Clean approximately once every 14 days.
• Use a vacuum cleaner or soft brush to remove accumulated dust.
• Remove the pre-filter carefully before cleaning.
• Avoid applying excessive pressure to the mesh.
• Ensure the filter is clean and completely dry before reinstalling.

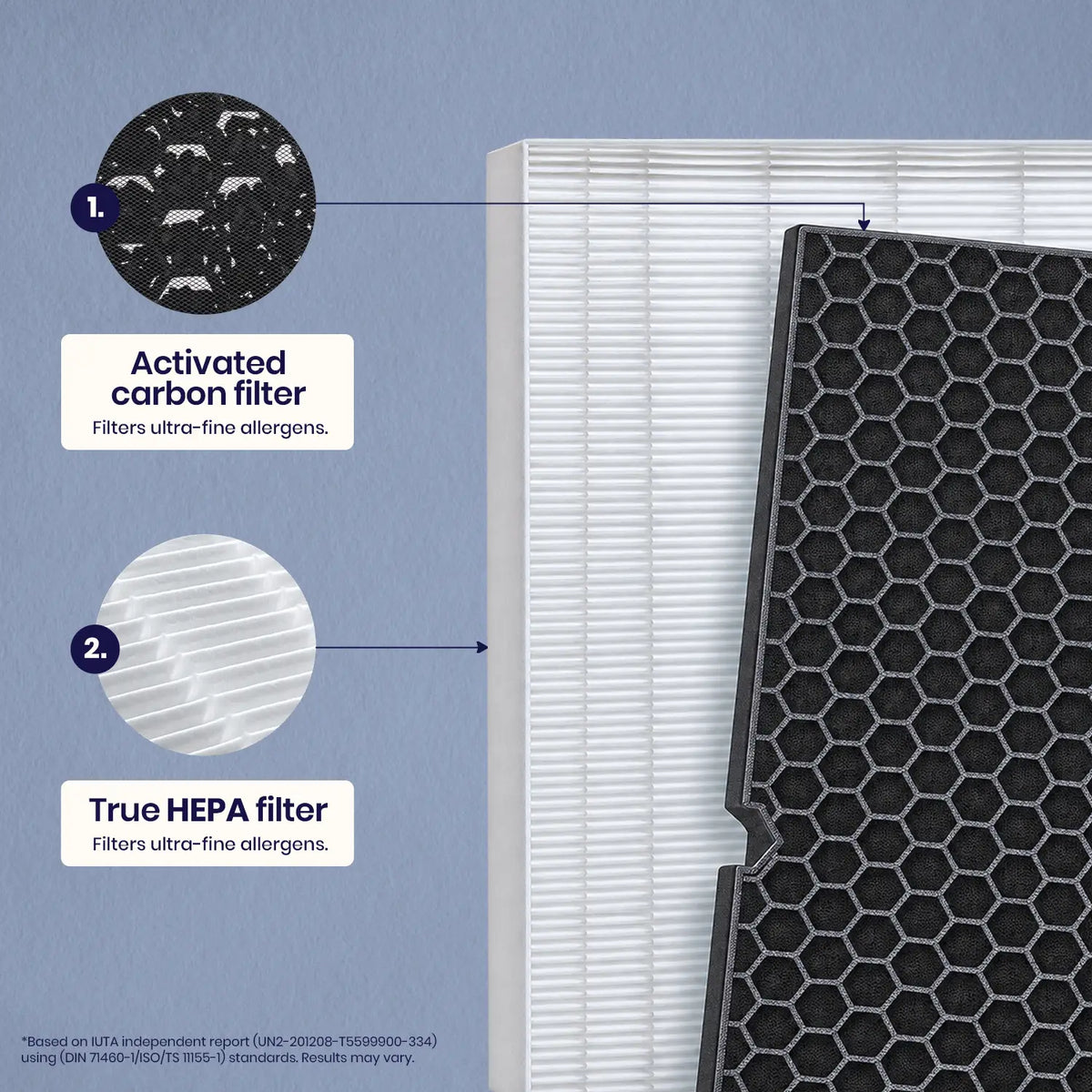

2. AOC Activated Carbon Filter

The AOC (Advanced Odor Control) activated carbon filter helps reduce unpleasant household odours and certain gaseous pollutants through adsorption.

It helps reduce:

• Cooking and kitchen odours.
• Pet-related smells.
• Smoke-related odours.
• Certain volatile organic compounds (VOCs).

Maintenance & Care:

• Non-washable activated carbon filtration medium.
• Recommended replacement approximately every 12 months.
• Do not wash or rinse the activated carbon filter.
• Avoid cleaning chemicals and liquid sprays.
• Replace according to the purifier's filter replacement indicator and applicable maintenance guidance.

3. True HEPA Filter

The WINIX 5520 True HEPA Filter is designed for high-efficiency airborne particle filtration, helping capture fine particles that may remain suspended in indoor air.

Under specified laboratory testing conditions, it captures up to 99.99% of airborne particles measuring 0.1–0.3 microns.

It helps capture:

• Fine airborne dust.
• Pollen and particulate allergens.
• Pet dander.
• Smoke particles.
• Other fine airborne particulate pollutants.

Maintenance & Care:

• Non-washable True HEPA medium.
• Do not rinse or soak the filter in water.
• Avoid vacuuming or brushing the delicate HEPA filtration media.
• Recommended replacement approximately every 12 months.
• Replace when the filter replacement indicator signals that servicing is required.

4. PlasmaWave Technology

PlasmaWave is an additional electronic air-treatment technology integrated into the WINIX 5520 Air Purifier.

It operates alongside the mechanical filtration stages to support the overall air purification process.

Important Information:

• PlasmaWave is an electronic treatment stage, not a physical filter.
• It is built into the purifier's air-treatment system.
• It does not require routine washing or periodic filter replacement.
• It works alongside the pre-filter, AOC carbon filter, and True HEPA filter.

Regular maintenance of the WINIX 5520 Air Filter helps maintain consistent airflow and effective filtration performance. Following the recommended cleaning and replacement schedule supports the long-term operation of the air purifier.

Recommended Maintenance Schedule

The reusable fine mesh pre-filter should be cleaned approximately every 14 days using a vacuum cleaner or soft brush to remove accumulated dust, lint, and pet hair. Remove the filter carefully before cleaning and ensure it is completely dry before reinstalling.

The AOC activated carbon filter is non-washable and should generally be replaced approximately every 12 months. Regular replacement helps maintain effective odour adsorption and filtration performance.

The True HEPA filter is also non-washable and should generally be replaced every 12 months, depending on usage, indoor air quality, and the filter replacement indicator. Avoid brushing or vacuuming the delicate HEPA filtration media.

PlasmaWave technology is an electronic air-treatment system and does not require routine filter cleaning or periodic cartridge replacement.

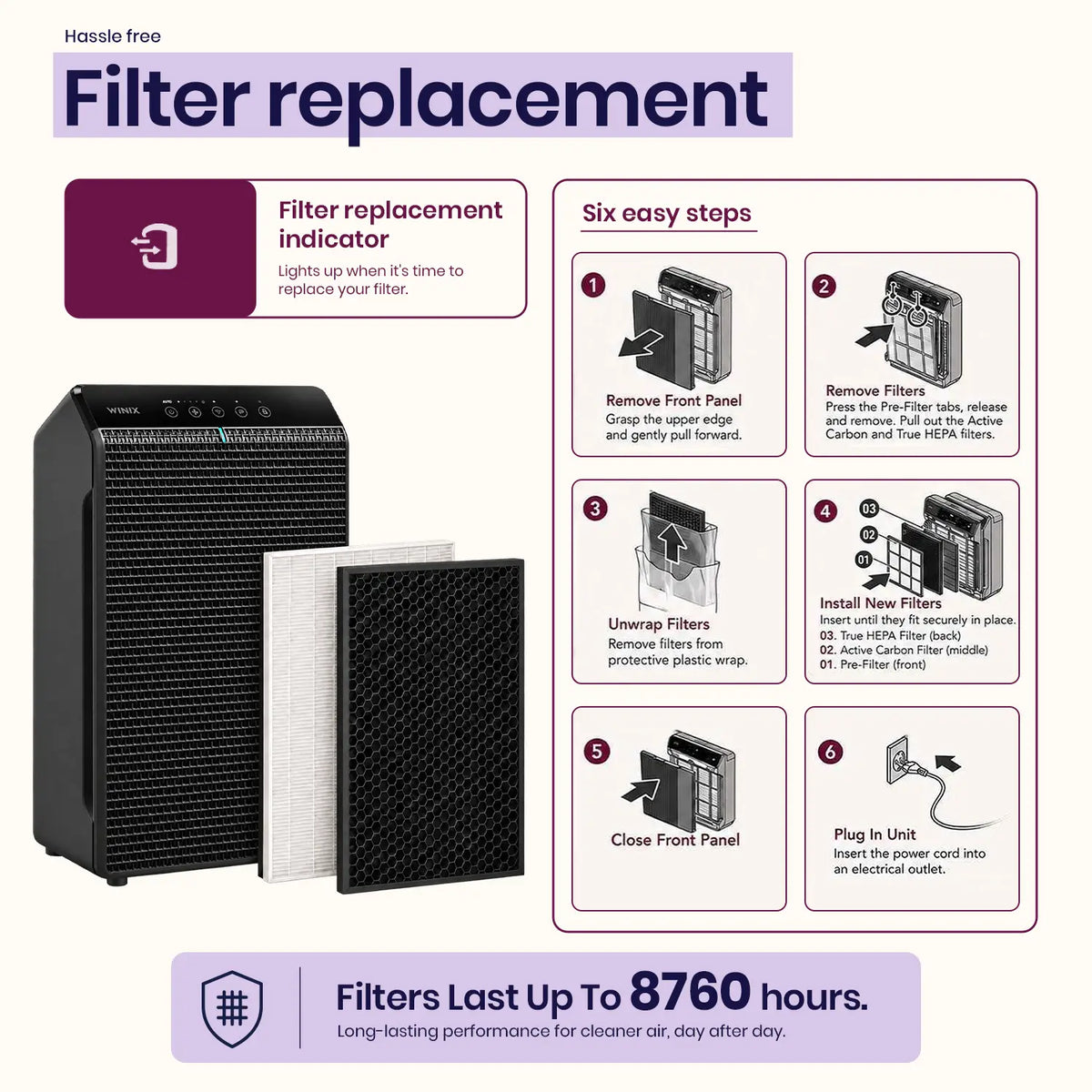

How to Replace the WINIX 5520 Air Filter

1. Turn Off the Air Purifier: Switch off the unit and disconnect it from the power supply.
2. Remove the Front Panel: Carefully open the front cover to access the filtration compartment.
3. Remove the Existing Filters: Take out the reusable fine mesh pre-filter, AOC activated carbon filter, and True HEPA filter.
4. Prepare the Replacement Filters: Remove all protective packaging from the new filtration components.
5. Install the True HEPA Filter: Position the compatible True HEPA filter at the rear of the filtration compartment.
6. Position the AOC Carbon Filter: Place the activated carbon filter in front of the HEPA filter.
7. Refit the Pre-Filter: Secure the reusable fine mesh pre-filter at the front and close the panel.
8. Reset the Filter Indicator: With the purifier switched on, follow the manufacturer's filter reset procedure for the specific model.

Important: The True HEPA and AOC activated carbon filters should not be washed. Clean the reusable fine mesh pre-filter using a vacuum cleaner or soft brush according to the applicable maintenance instructions.
